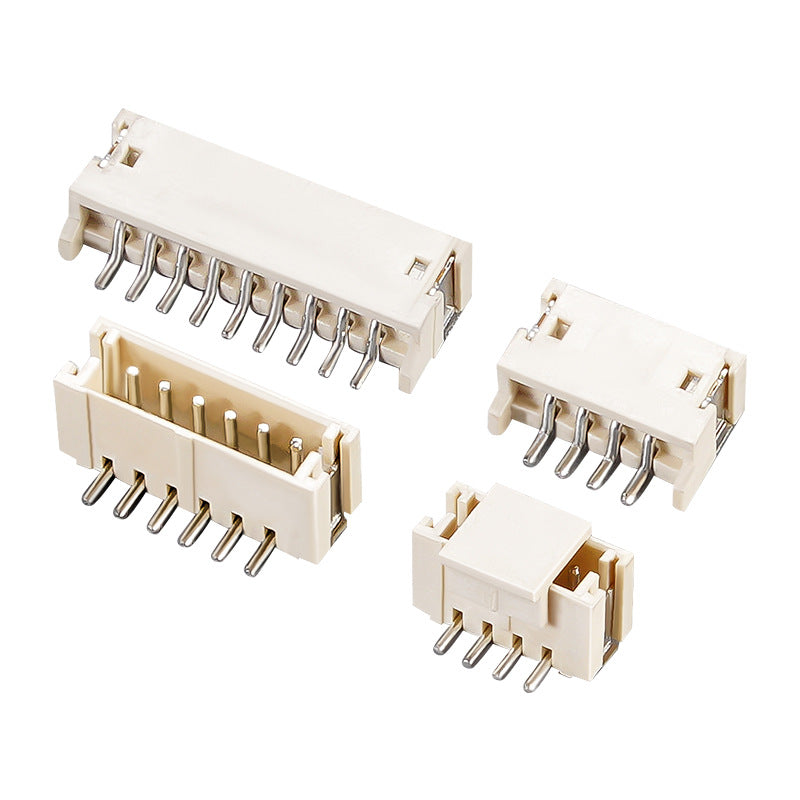

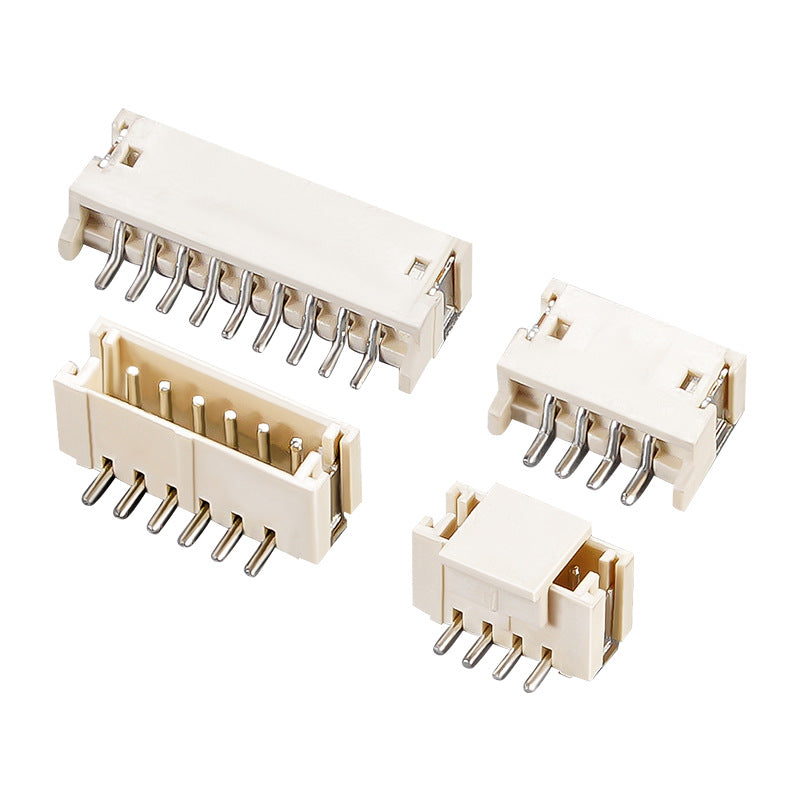

ZH 1.5mm SMT Header Vertical Type 2-12 Pin Compatible JST ZH Connector 1000pcs/reel
ZH 1.5mm SMT Header Vertical Type 2-12 Pin Compatible JST ZH Connector 1000pcs/reel
Regular price
$75.00 USD
Regular price
Sale price
$75.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
ZH 1.5mm pitch vertical SMT header connector compatible with JST ZH series. Designed for compact wire-to-board PCB applications, available in 2-12 positions and supplied in 1000pcs/reel packaging for automated SMT assembly.
Key Features
- ZH 1.5mm pitch wire-to-board SMT connector
- Vertical surface mount PCB header design
- Compatible replacement for JST ZH series
- Available from 2 to 12 pin positions
- Supplied in 1000pcs/reel packaging
- Compact design for space-limited applications
- Suitable for automated PCB assembly
| Item | Specification |
|---|---|
| Product Type | Wire-to-Board SMT Header |
| Pitch | 1.5mm |
| Mounting Type | SMT |
| Orientation | Vertical |
| Positions | 2-12 Pin |
| Packaging | 1000pcs/Reel |
| Contact Material | Copper Alloy |
| Contact Plating | Tin Plated |
| Insulator Material | PA66 Nylon |
| Rated Current | 1A |
| Rated Voltage | 50V AC/DC |
| Operating Temperature | -25℃ to +85℃ |
Compatible With
- JST ZH 1.5mm Series
- ZH 1.5mm wire-to-board connector systems
Applications
- Drone / UAV Electronics
- Robotics Control Boards
- 3D Printer Electronics
- Sensor Modules
- Camera Equipment
- Consumer Electronics
- Embedded Control Systems
Package
1000pcs / Reel
Available Pin Options:
- 2 Pin
- 3 Pin
- 4 Pin
- 5 Pin
- 6 Pin
- 8 Pin
- 10 Pin
- 12 Pin
