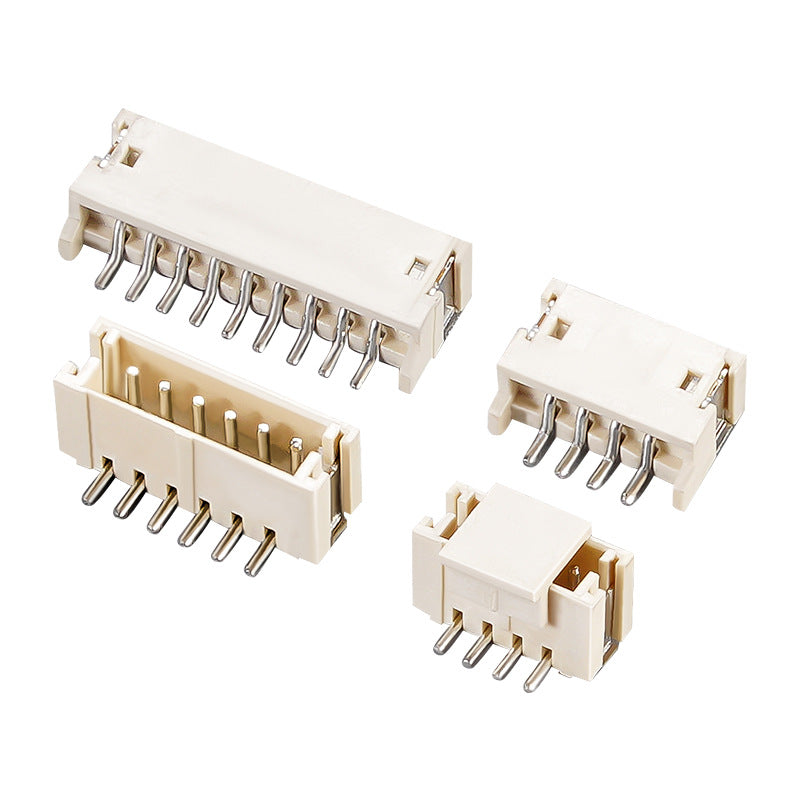

ZH 1.5mm SMT Header Horizontal Type 2-12 Pin Compatible JST ZH Connector 1000pcs/reel

ZH 1.5mm SMT Header Horizontal Type 2-12 Pin Compatible JST ZH Connector 1000pcs/reel

Pin
$60.00 USD
$60.00 USD
Sale Sold out
Shipping calculated at checkout.

ZH 1.5mm pitch horizontal SMT header connector compatible with JST ZH series. Featuring a low-profile right-angle surface mount design, it is suitable for compact PCB applications and supplied in 1000pcs/reel packaging for automated SMT production.

Key Features

  • ZH 1.5mm pitch wire-to-board SMT connector
  • Horizontal / right-angle SMT mounting design
  • Compatible replacement for JST ZH series
  • Available in 2-12 pin positions
  • Supplied in 1000pcs/reel packaging
  • Low-profile design for space-saving PCB layouts
  • Suitable for high-volume automated assembly
Item Specification
Product Type Wire-to-Board SMT Header
Pitch 1.5mm
Mounting Type SMT
Orientation Horizontal / Right Angle
Positions 2-12 Pin
Packaging 1000pcs/Reel
Contact Material Copper Alloy
Contact Plating Tin Plated
Insulator Material PA66 Nylon
Rated Current 1A
Rated Voltage 50V AC/DC
Operating Temperature -25℃ to +85℃



Compatible With

  • JST ZH 1.5mm Series
  • ZH 1.5mm wire-to-board connector systems

Applications

  • UAV / Drone Control Boards
  • Robotics Electronics
  • 3D Printer Mainboards
  • Sensor Modules
  • Camera Devices
  • Medical Equipment
  • Embedded Electronics

Package

1000pcs / Reel

Available Pin Options:

  • 2 Pin
  • 3 Pin
  • 4 Pin
  • 5 Pin
  • 6 Pin
  • 8 Pin
  • 10 Pin
  • 12 Pin
