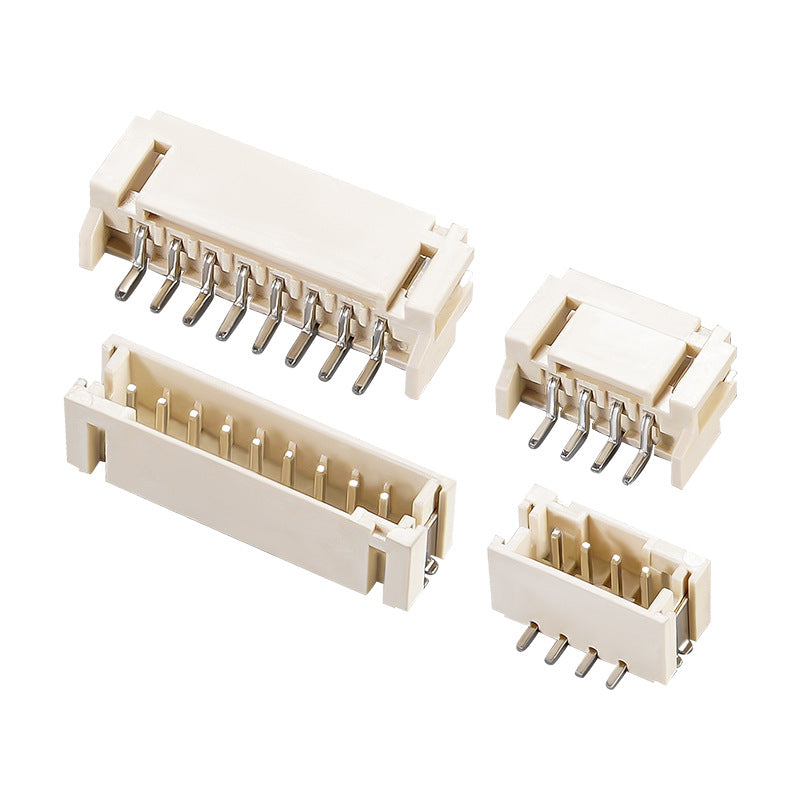

PH 2.0mm SMT Header Horizontal Type 2-8 Pin Compatible JST PH Connector

PH 2.0mm SMT Header Horizontal Type 2-8 Pin Compatible JST PH Connector

Pin
$55.00 USD
$55.00 USD
Sale Sold out
Shipping calculated at checkout.

PH 2.0mm pitch horizontal SMT header connector compatible with JST PH series. Designed for low-profile PCB applications, featuring right-angle surface mount design and supplied in 1000pcs/reel packaging for automated assembly.

Key Features

  • PH 2.0mm pitch wire-to-board connector
  • Horizontal / Right Angle SMT mounting design
  • Compatible replacement for JST PH series
  • Available in 2-8 pin positions
  • Supplied in 1000pcs/reel packaging
  • Low-profile design for space-saving PCB layouts
  • Suitable for automated SMT production
Item Specification
Product Type Wire-to-Board SMT Header
Pitch 2.0mm
Mounting Type SMT
Orientation Horizontal / Right Angle
Positions 2-8 Pin
Packaging 1000pcs/Reel
Contact Material Copper Alloy
Contact Plating Tin Plated
Insulator Material PA66 Nylon
Rated Current 2A
Rated Voltage 100V AC/DC
Operating Temperature -25℃ to +85℃



Compatible With

  • JST PH 2.0mm Series
  • PH 2.0mm wire-to-board connector systems

Applications

  • 3D Printer Control Boards
  • Drone / UAV Electronics
  • Robotics Controllers
  • Consumer Electronics
  • Battery Management Systems
  • Industrial Control Boards
  • Embedded Devices

Package

1000pcs / Reel
