Deutsch DT 2-Pin Waterproof Connector Set, Heavy Duty Grey Housing with Wedgelocks & Solid Terminals, 100% Compatible with TE DT04-2P / DT06-2S (Bulk Wholesale Pack)

Looking for a reliable, automotive-grade alternative to expensive original Deutsch connectors for your production line or repair shop? Our industrial-grade Deutsch DT 2-Way Connector Sets offer a 100% seamless fit, high-vibration resistance, and superior IP68 waterproofing—at a fraction of the OEM cost. Perfect for heavy equipment, agricultural machinery, trucking fleet maintenance, and custom automotive wire harness shops.

【Key Features & B2B Advantages】

• 100% Drop-In Replacement: Fully interchangeable with TE Connectivity / Deutsch part numbers DT04-2P (Receptacle) and DT06-2S (Plug). No need to change your existing crimping tools, wedgelocks, or wiring layouts.

• IP68/IP69K Waterproofing: Equipped with high-grade silicone rear seals and interface seals to protect your electrical circuits from moisture, dust, mud, and harsh outdoor environments.

• Premium Solid Terminals: Includes high-conductivity solid pin/socket contacts (Size 16, 14-20 AWG), ensuring stable current transmission up to 13 Amps without signal degradation.

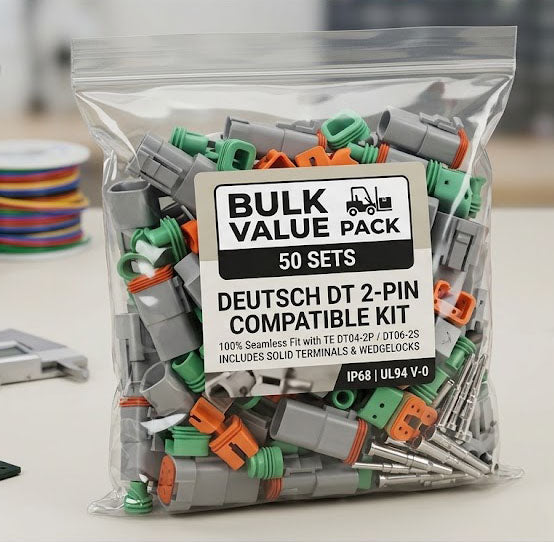

• Ready-to-Wire Bulk Packs: Available in single-specification bags of 20, 50, or 100 sets. Say goodbye to missing pieces—each set comes complete with housings, wedgelocks, and matching pins.

【Technical Specifications】

• Series: Deutsch DT Series Compatible

• Number of Positions: 2 Pin / 2 Way (Pin Diameter: 1.59mm)

• Wire Gauge Range: 14-20 AWG (0.5 mm² - 2.0 mm²)

• Current Rating: 13 Amps Max per contact

• Operating Temperature: -55°C to +125°C (-67°F to +257°F)

• Housing Material: Rugged Thermoplastic (UL94 V-0 Rated)

• Insulation Resistance: 1000 Megohm Minimum

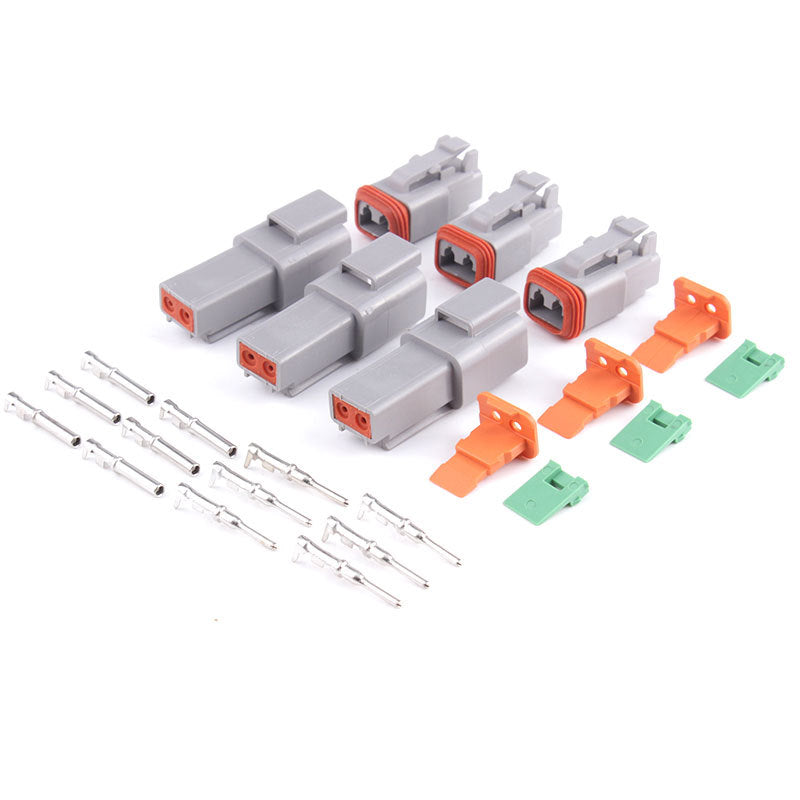

【What's Included in the Pack A (20-Set Pack)】

• 20 x DT04-2P Style Male Receptacle Housings (Grey)

• 20 x DT06-2S Style Female Plug Housings (Grey)

• 20 x W2P Wedgelocks (Orange)

• 20 x W2S Wedgelocks (Green)

• 40 x Size 16 Solid Pin Contacts (14-20 AWG)

• 40 x Size 16 Solid Socket Contacts (14-20 AWG)

【What's Included in the Pack B (100-Set Pack)】

• 100 x DT04-2P Style Male Receptacle Housings (Grey)

• 100 x DT06-2S Style Female Plug Housings (Grey)

• 100 x W2P Wedgelocks (Orange)

• 100 x W2S Wedgelocks (Green)

• 200 x Size 16 Solid Pin Contacts (14-20 AWG)

• 200 x Size 16 Solid Socket Contacts (14-20 AWG)

【B2B Wholesale & Custom Pigtail Harnessing】 📢 Need 1000+ sets, custom wire lengths, or fully assembled pigtails? We are a direct supplier supporting Volume Tiered Pricing (MOQ applies for best rates) and OEM Custom Wire Harnessing. If you require this 2-pin connector pre-crimped with custom automotive/silicone wires (e.g., 30cm pigtails), please click contact our engineering team directly at sandy@lynkton.com. Samples for production verification are available upon request.
