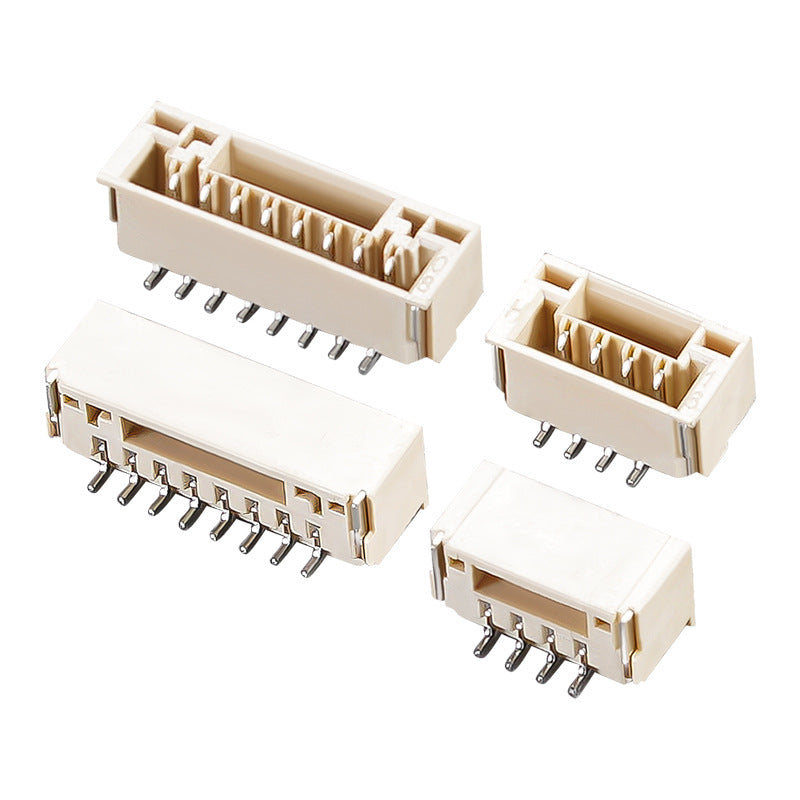

1.0mm SH Wire to Board Connector Horizontal SMT Type 2000pcs/Reel

1.0mm SH Wire to Board Connector Horizontal SMT Type 2000pcs/Reel

Pin
$130.00 USD
$130.00 USD
Sale Sold out
Shipping calculated at checkout.

1.0mm pitch SH series compatible wire-to-board connector with horizontal SMT design. Compact low-profile connector supplied in tape & reel packaging, ideal for drones, robotics, 3D printers and compact electronic devices.

Key Features

1.0mm Pitch Compact Wire to Board Connector

  • 1.0mm pitch design for high-density PCB applications.
  • Suitable for small wire harness and signal connection.

Horizontal SMT Mount Design

  • Right-angle PCB mounting saves board space.
  • Low-profile structure for compact electronic devices.

Reliable Wire Connection

  • Secure terminal contact ensures stable electrical performance.
  • Suitable for vibration-sensitive applications.

Tape & Reel Packaging

  • Supplied with 2000pcs/reel packaging.
  • Suitable for automated SMT assembly.

Multiple Pin Options

Available pin counts:

  • 2 Pin
  • 3 Pin
  • 4 Pin
  • 6 Pin
  • 8 Pin
Item Specification
Product Type Wire to Board Connector
Pitch 1.0mm
Series SH Compatible
Mounting Type Horizontal SMT
Connector Type Receptacle / PCB Header
Contact Type Right Angle
Pin Options 2 / 3 / 4 / 6 / 8 Pin
Package Tape & Reel
Quantity 2000pcs/Reel
Operating Temperature -25℃ to +85℃



Applications

  • UAV / Drone Electronics
  • Robotics Equipment
  • 3D Printers
  • Smart Devices
  • Industrial Control Boards
  • Battery Management Systems
  • Compact Electronic Products

Package

  • 2000pcs/Reel
  • SMT compatible tape & reel packaging
  • Suitable for automated PCB assembly
  • Samples available for testing
