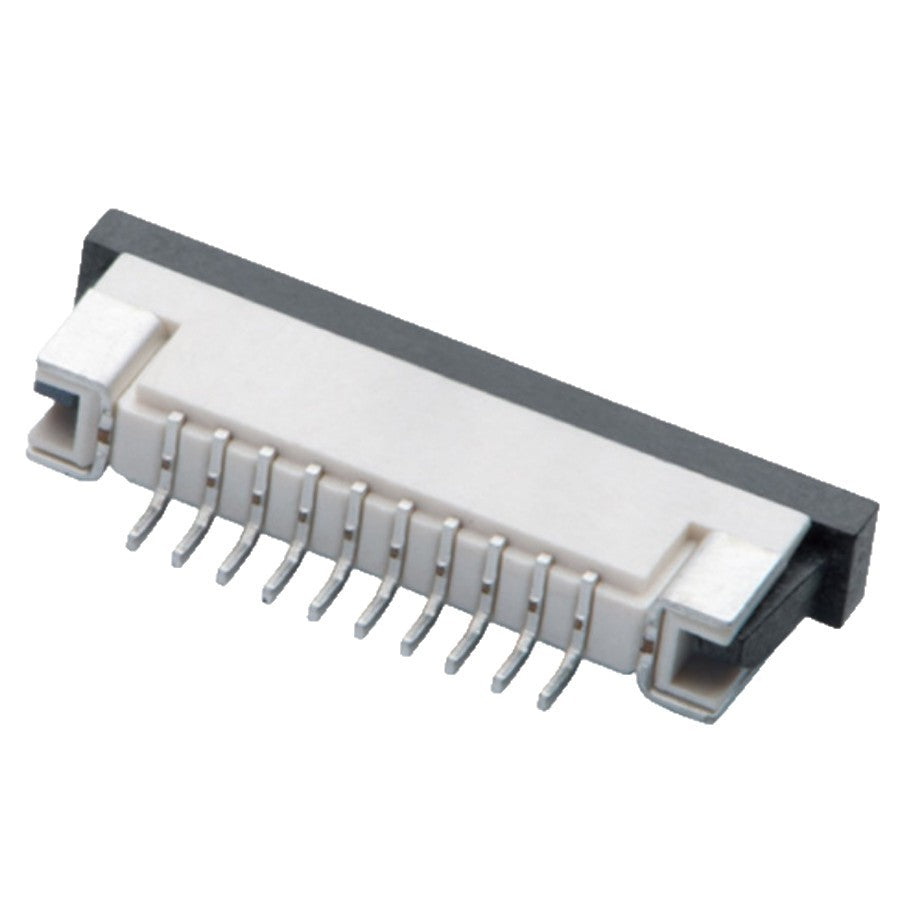

1.0mm FPC FFC Connector Pull Lock SMT Bottom Contact 10-30 Pin 2000pcs Reel

1.0mm FPC FFC Connector Pull Lock SMT Bottom Contact 10-30 Pin 2000pcs Reel

Pin
$360.00 USD
$360.00 USD
Sale Sold out
Shipping calculated at checkout.

1.0mm pitch FPC/FFC connector with pull lock design, bottom contact and SMT mounting. Designed for industrial control boards, displays, automation equipment and electronic devices requiring reliable FPC cable connection.

Key Features

1.0mm Pitch FPC/FFC Connector

  • Standard 1.0mm pitch design for flexible flat cable (FFC/FPC) applications.
  • Suitable for various PCB connection requirements.

Pull Lock Design

  • Slider locking mechanism provides secure FPC cable retention.
  • Reliable connection performance for industrial and electronic equipment.

SMT Horizontal Mount Type

  • Surface mount design for compact PCB layouts.
  • Compatible with automated PCB assembly processes.

Multiple Pin Options

Available pin counts:

  • 10 Pin
  • 20 Pin
  • 30 Pin
Item Specification
Product Type FPC/FFC Connector
Pitch 1.0mm
Lock Type Pull Lock / Slider Lock
Contact Type Bottom Contact
Mounting Type SMT Horizontal Mount
Cable Type FPC / FFC Flexible Cable
Rated Voltage 50V AC/DC
Rated Current 0.5A
Operating Temperature -25℃ to +85℃
Pin Options 10 / 20 / 30 Pin
Package Tape & Reel



Applications

  • Industrial Control Equipment
  • Automation Systems
  • PLC Control Boards
  • Robotics Equipment
  • 3D Printers
  • LCD Display Modules
  • Medical Equipment
  • Electronic Devices

Package

  • Supplied in tape & reel packaging
  • Suitable for automatic assembly
  • Small quantity orders supported
  • Samples available for evaluation
